The Tuke & Bell RoBeC consists of a G.R.P. tank which is separated into a number of different treatment zones. In the Primary Settlement Zone settles gross solids into sludge, the supernatant liquor then passes forwards into the Biozone. In the Biozone, slowly rotating contactor discs treat the effluent by means of biological oxidation, the treated liquid then flows into the Final Settlement Zone. In the Final Settlement Zone any humus sludge or scum that forms as part of the natural biological process is removed by means of an automated recirculation pump system and returned to the Primary Settlement Zone for further treatment. The final effluent is then typically discharged to a reed bed or water course depending on local environmental allowances. The unit is entirely enclosed by walk-in covers; these contain any odours, guard the moving components and give a low visual impact to the plant.
Our larger RBC the ‘RoBeC’ is offered in a bespoke range of sizes to suit specific requirements such as local population and plant loading; this allows the unit to be tailored to the clients’ specification. Typically, a single unit can treat a population from 25 up to 600; multiple units can be installed on a single site to increase maximum capacity. The flexibility of the RoBeC design allows it to be broken down into modular components if such a system is required.
Our more compact RBC the ‘Robette’ is based on the design of the larger RoBeC unit and is offered in a range of standard population sizes from 25 up to 125; multiple units can be installed on a single site to increase maximum capacity. The design principles are the same as the larger unit, however due to the smaller size and simplification the cost is vastly reduced.
Tuke & Bell has over 30 years’ experience with rotating biological contactors and developed its RoBeC unit in conjunction with Aston University and the design has been fully audited by Cranfield University. We have supplied RoBeC units to all major UK water authorities, working alongside them to further develop the design to its current form. The Tuke & Bell RoBeC is designed for a 20-year lifespan; however, units are already exceeding this.
The Tuke & Bell RoBeC incorporates the following features: –
- Self-contained package sewage treatment plant.
- Low running costs and maintenance requirements.
- Bespoke design ensures correct sizing and application of plant.
- Proven design with thousands of units installed.
- Automated design requires minimal operator input.
- Small unit footprint allows for simplified construction.
- Low visual and environmental impact.

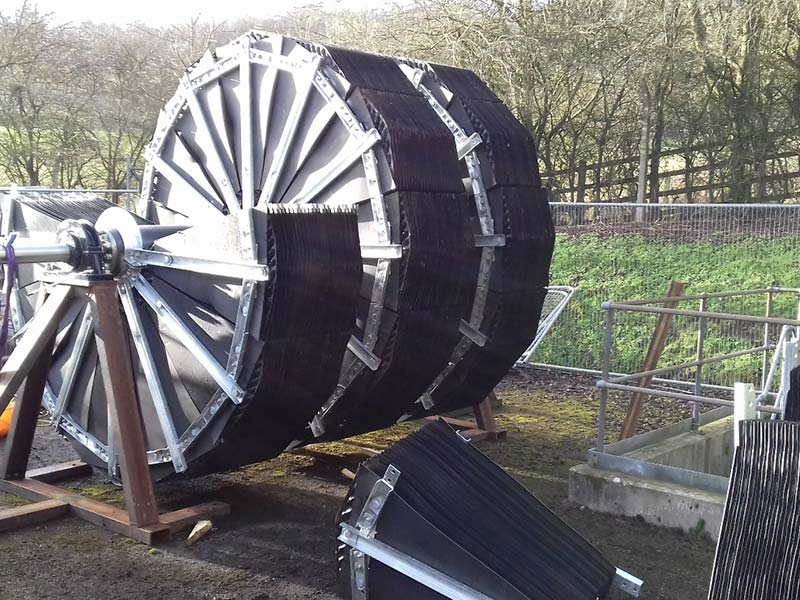

Boundary STW - 3.0 m Ø Rotor Built On-Site

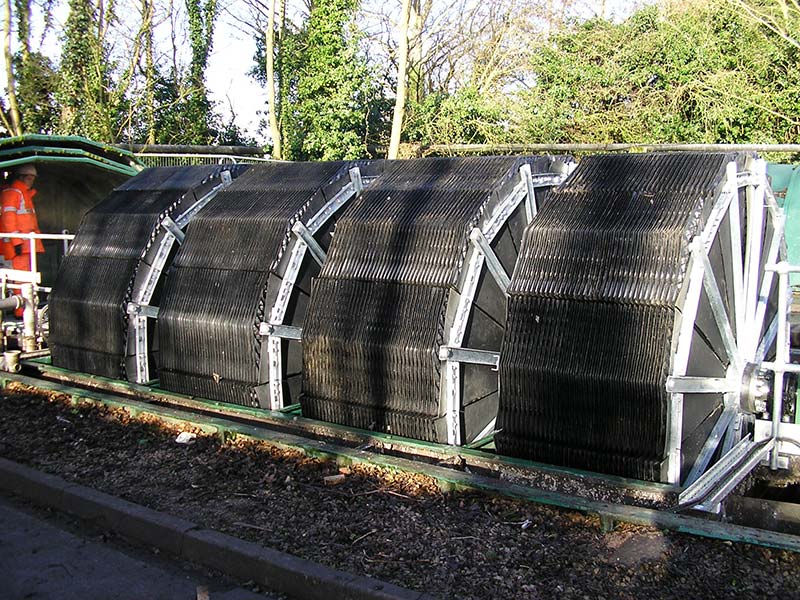

Colton STW - 3.0 m Ø Rotor Installation

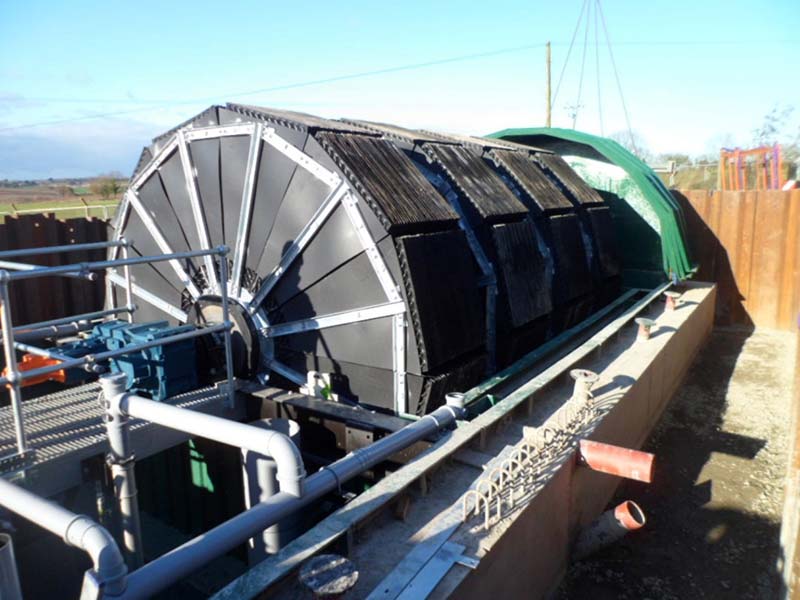

Clifton Upon Teme STW - 3.8 m Ø Rotor & Gearbox Installed in RBC Tank

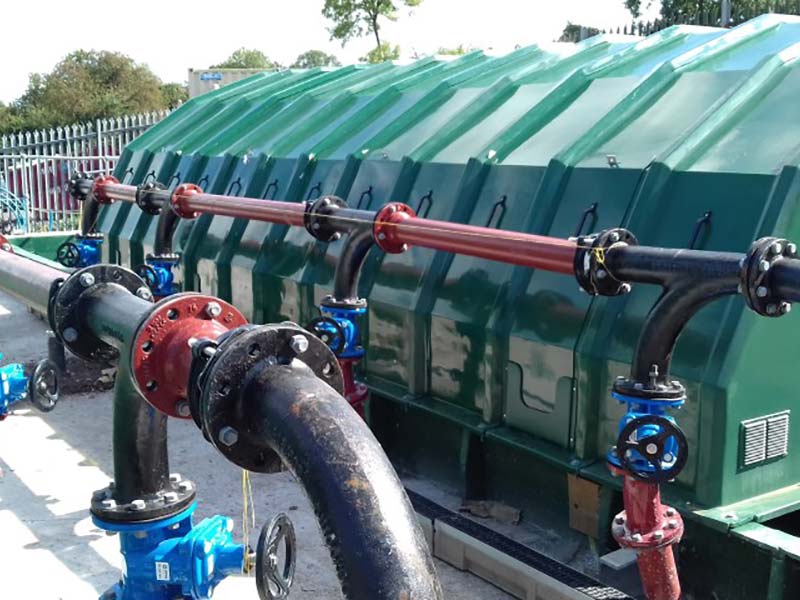

Augher WwTW - 3.0 m Ø RBC & Desludge Pipework

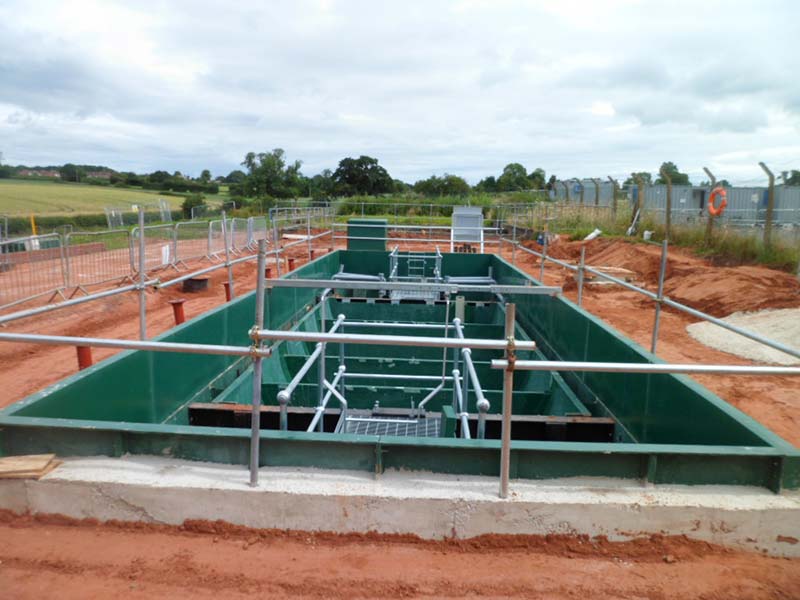

Cheswardine STW - 3.8 m Ø RBC GRP Tank Installation

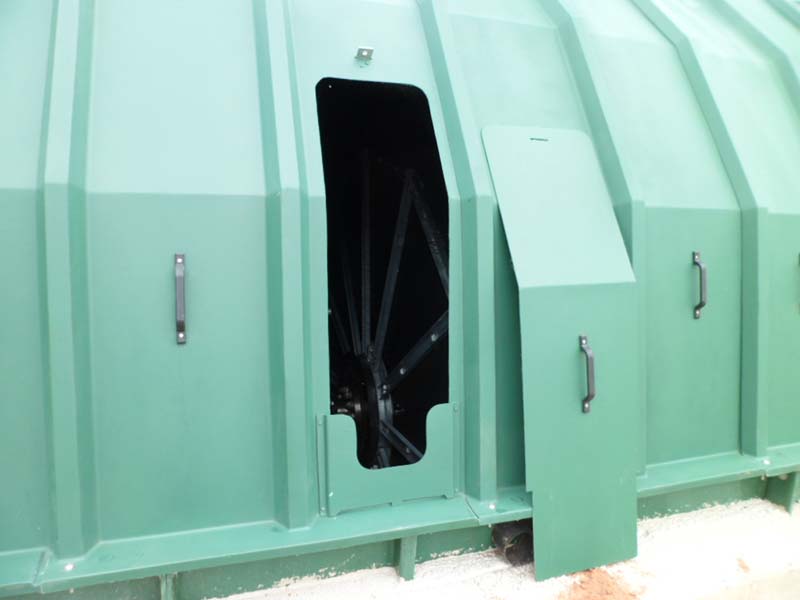

Cheswardine STW - 3.8 m Ø RBC Removeable Covers

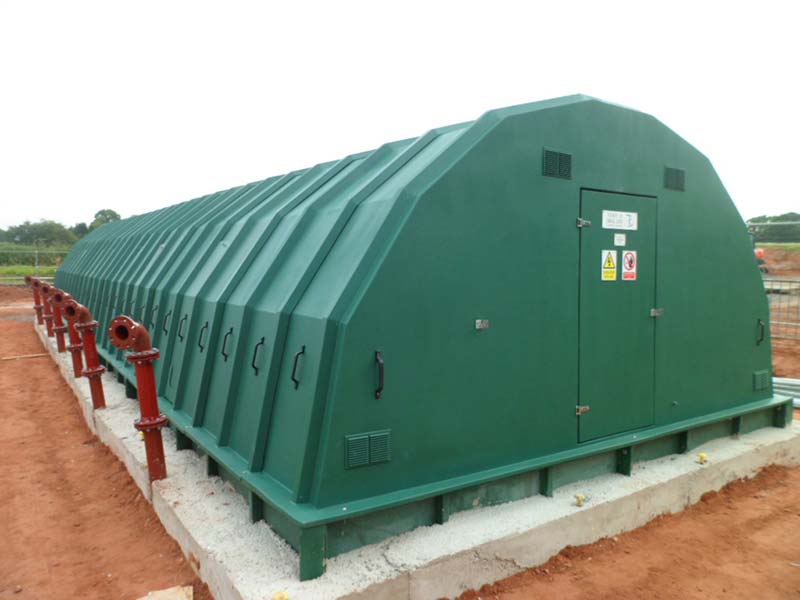

Cheswardine STW - 3.8 m Ø RBC Tank & Desludge Pipework

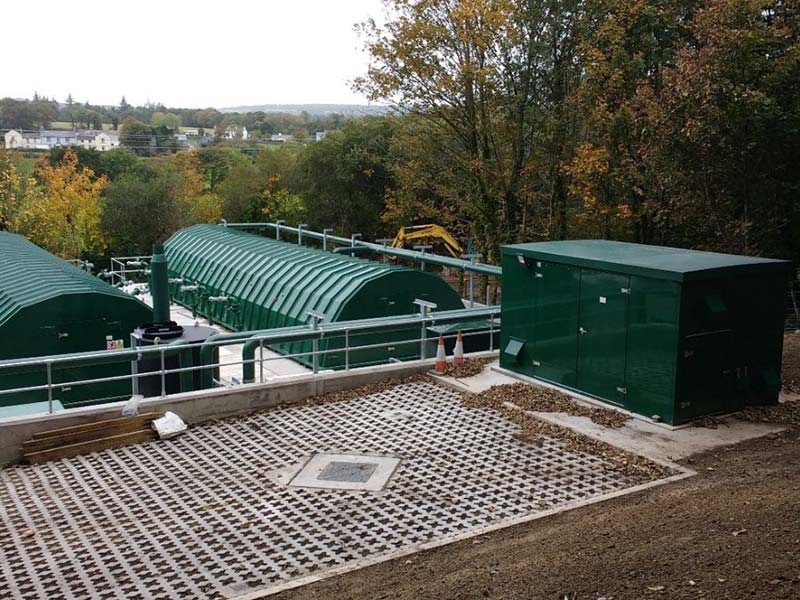

Ballagarey STW – 2 No. 3.0 m Robec’s

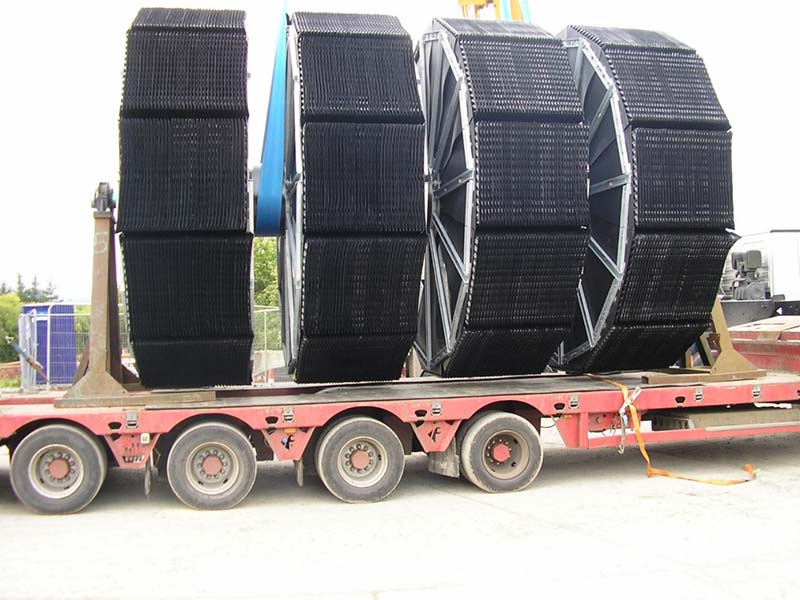

Derrygonnelly WwTW – 4 No. Banks of media on a 3.8 m Ø Rotor

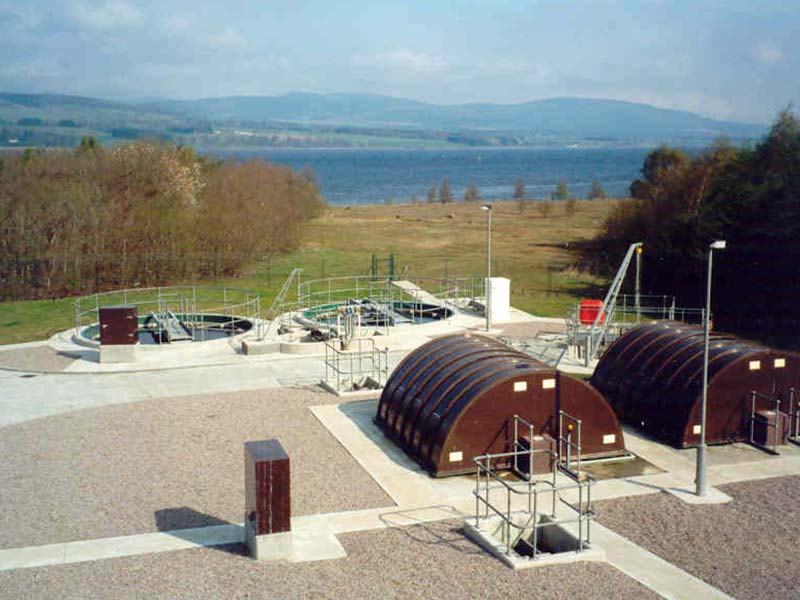

Culbokie STW – 2 No. RBC’s
